RB76×2000×3×R200×8

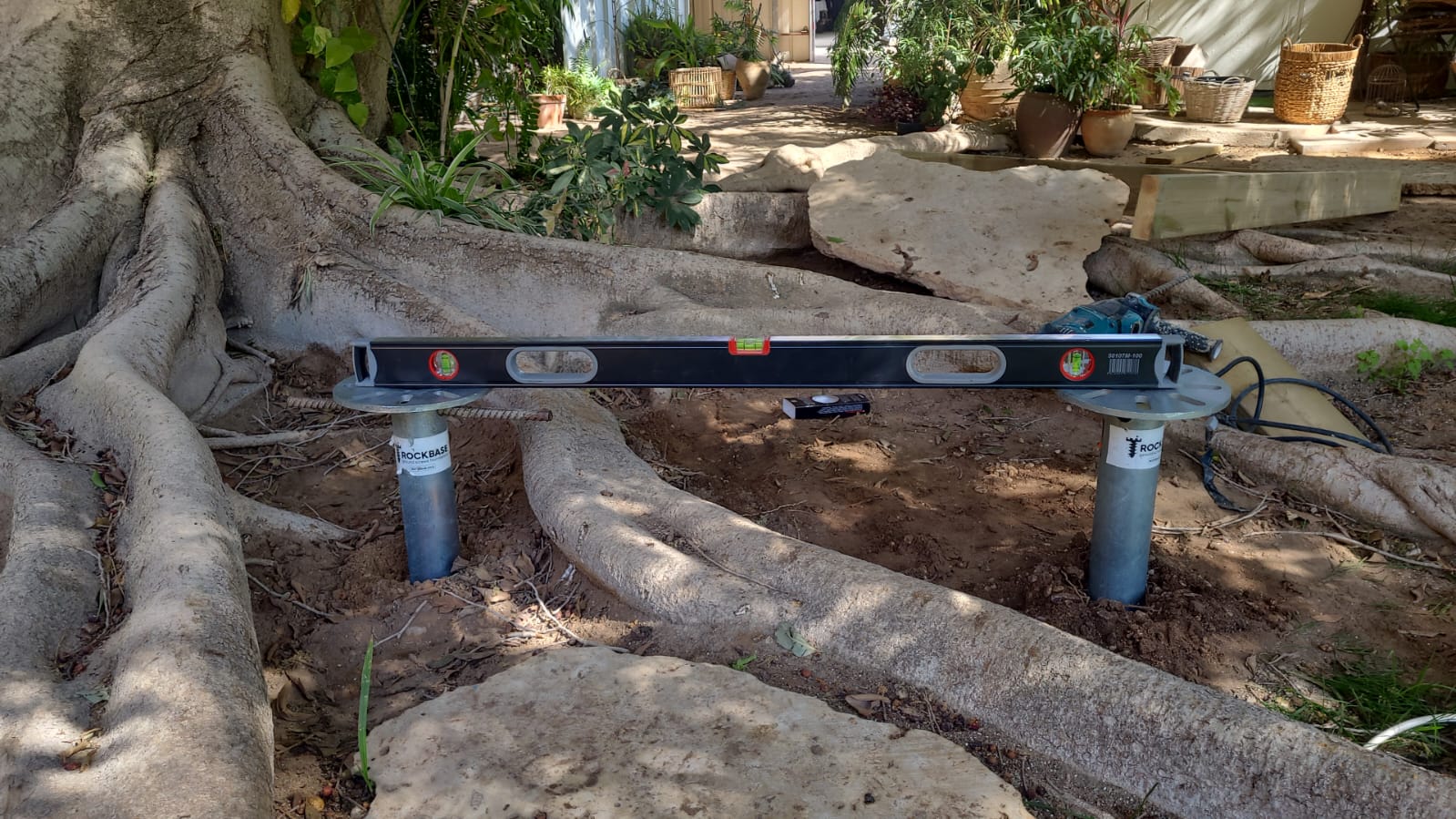

Technical specifications: • Total length: 2000 mm • Pipe diameter: 76 mm • Wall thickness: 3–4 mm • Number of spirals: 1–3 (depending on model) • Spiral diameter: 96–300 mm • Spiral type: Continuous / Helix • Extension type: P4 / R20 • Steel type: S235 / S355 • Coating: Galvanized ≥ 70 microns / Epoxy Load data (based on semi-rigid soil): • Compression load: 4800 kg • Pullout load: 3500 kg • Horizontal load: 1000 kg Coil type: Continuous coil – continuous threading along the length of the pipe, which transfers load through friction with the soil. Helix coil – flat plates to create a grip in the depth of the soil, effective for vertical loads. Installation method: Can be inserted using hydraulically powered drilling equipment (such as Digga MM14K), or using a portable planetary electric screwing rig – especially for sites without access to heavy equipment. Recommended uses: • Pergolas • Decks • Fences • Light structures • Infrastructure in complex terrain

---

• Brand: rockbase
• SKU: RB76×2000×3×R200×8
